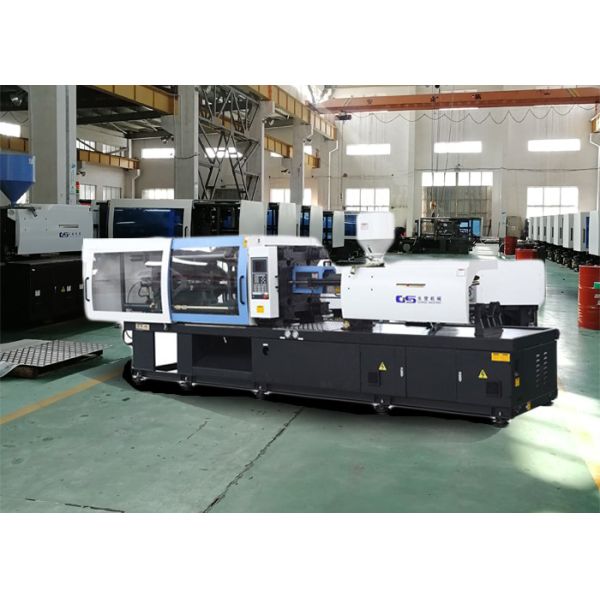

Heavy Duty Industrial Polypropylene Injection Molding Machine GS128M

    Buy cheap Heavy Duty Industrial Polypropylene Injection Molding Machine GS128M from wholesalers

    Buy cheap Heavy Duty Industrial Polypropylene Injection Molding Machine GS128M from wholesalers
    • Buy cheap Heavy Duty Industrial Polypropylene Injection Molding Machine GS128M from wholesalers

    Heavy Duty Industrial Polypropylene Injection Molding Machine GS128M

    Ask Lasest Price
    Brand Name : GS
    Model Number : GS128M
    Certification : ISO9001
    Price : Negotiable
    • Product Details
    • Company Profile

    Heavy Duty Industrial Polypropylene Injection Molding Machine GS128M

    Thermoset Plastic Injection Machinery GS128M



    GS128M


    A

    B

    C


    INJECTIONUNIT

    Screw Diameter

    mm

    36

    40

    45

    Screw L/D Ratio

    L/D

    23.3

    21

    18.7

    Shot size(Theoretical)

    cm3

    173

    214

    270

    PS) Injection Weight

    g

    157

    195

    246

    PS Injection Rate

    g/s

    83

    102

    130

    PS Plasticizing capacity

    g/s

    11.3

    13.9

    18

    Injection Pressure

    Mpa

    231

    188

    148

    Screw Speed

    Rpm

    0-180


    CLAMPINGUNIT

    Clamp Tonnage

    KN

    1200

    Toggle stroke

    mm

    360

    Space Between Tie Bars

    mm

    410*410

    Max.Mold Height

    mm

    450

    Min.Mold height

    mm

    150

    Ejector stroke

    mm

    120

    Ejector tonnage

    KN

    33

    Ejector Number

    piece

    5


    OTHERS

    Max.Pump Pressure

    Mpa

    17.5

    pump motor power

    KW

    11

    Heater Power

    KW

    9.75

    Machine Dimension(L*W*H)

    m

    4.85*1.27*1.96

    Machine Weight

    t

    4.6

    PS Hopper Capacity

    Kg

    25

    Oil Tank Capacity

    L

    280


    GSM series multi-component injection machine is the new product developed by Guangsu Company, with the purpose of satisfying the huge demand on combined injection such as multi-color, soft and hard materials, integrated seal and decorative pattern etc. Generally, two groups of injection units are set, which are placed parallel and controlled independently. The customer can also increase the third and forth group of injection units, to obtain the 3-color and 4-color products.


    OUR COMPANY

    Following the principle of "Technology oriented,Management innovation,Quality first and Customer uppermost",the company is continuing to enhance the development capacity,focusing on the development of a series of products with leading level at home and surpassing the international level,making it the new highlight of economic growth of the company.At the same time,the company has launched a series of new measures in the aspect of management and quality control,and strengthened the cooperation with the domestic and international scientific research institutes and famous enterprise to build the "GS" brand.Under the leadship of the company,all the staffs have decided to carry on the spirit of "Union,Struugle,Practice,Devotion,Innovation and Development" leading the company to a first-class famous enterprise.

    Glorious GS,Steer the flourishing future.We welcome all domestic and international customers to visit us and give us intructions.Just as what we did before,we shall continue to try our level best to provide our customers with professional and considerate service to gain the confidence and support from both the old and new customers.


    Guarantee:

    We are response for one year warranty for the machine, however, it without any human conduct. And provide one-year free spare part for client. We will send engineer to client’s company to help installing the machine, teaching their staff operating the machine and also, we do have a private school which helping our client sending their staff to china, help them training.

    After sales service:

    The buyer pays travel expenses, hotels, airfares, meals and ground transportation and any other expenses related to installation and training at customers’ facility.
